Product Highlights

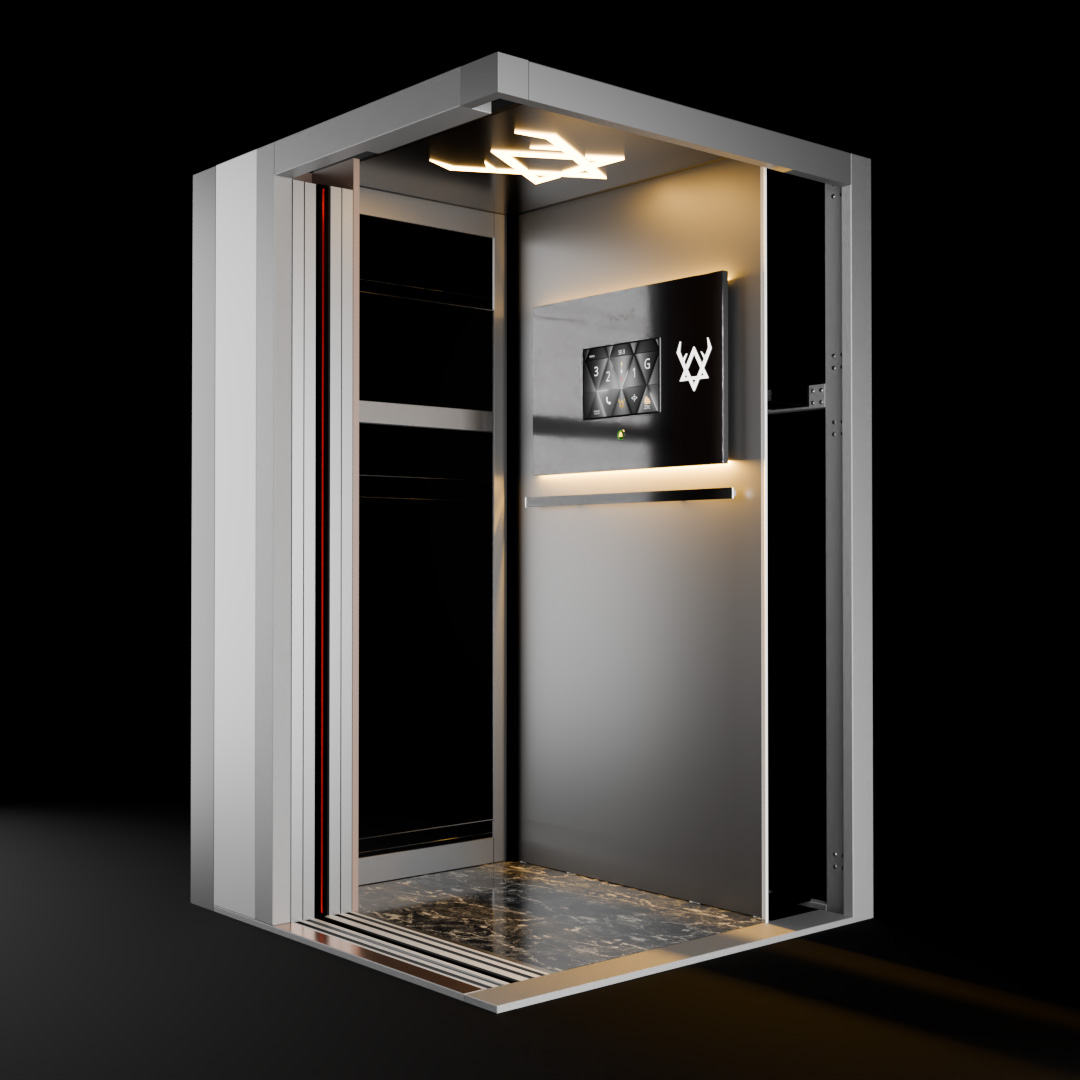

SE-3 Belt Drive Gearless Home Elevators
The SE-3 operates using a gearless belt drive mechanism, where multiple reinforced belts connect the elevator cabin and counterweight to a high-performance gearless motor. As the motor rotates, the belts move the cabin smoothly while the counterweight balances the load, reducing the energy required for operation and ensuring consistent performance.
This advanced drive technology eliminates the need for conventional gears, oiling, and greasing, resulting in lower maintenance requirements, quieter operation, and enhanced long-term reliability. The compact design also allows seamless integration into modern residential spaces without compromising performance or comfort.
Additional Features
- Dual Side Blower
- Integrated Fire Safety Systems
- Smart Home Integration
- Auto Dialler with Tactile Button
Same Relaiability.
More Refinement.

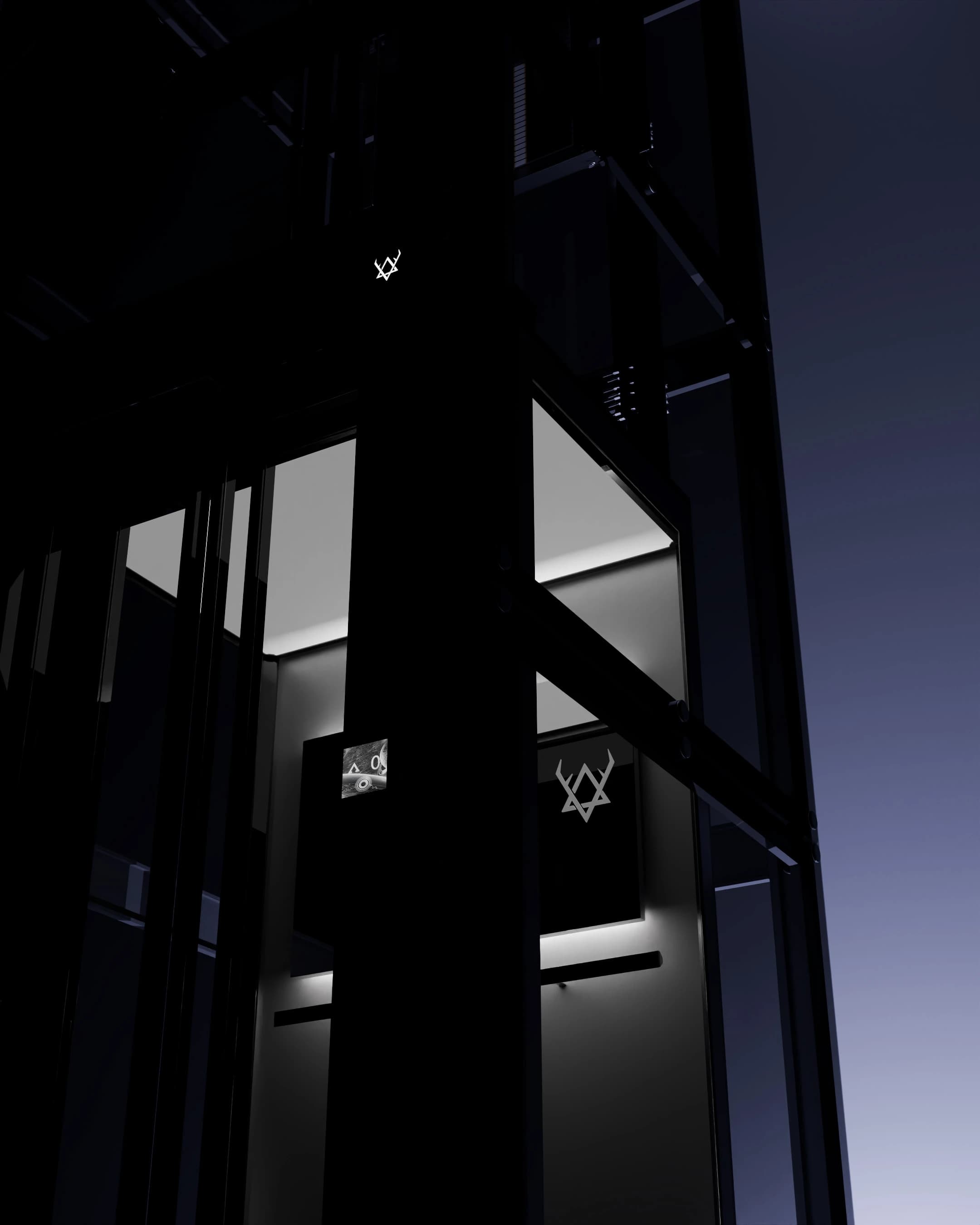

Introducing new shaft in SE-3

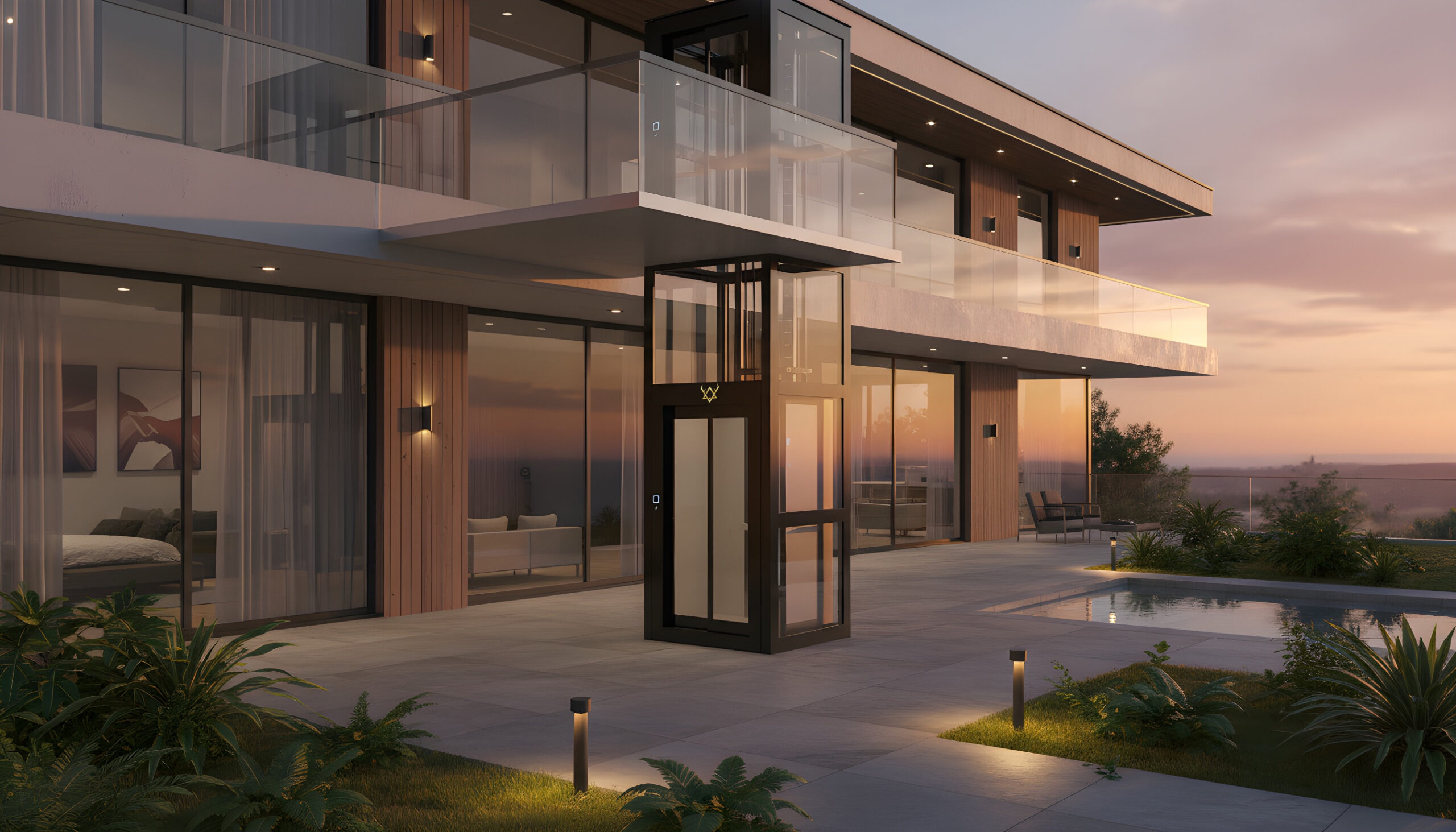

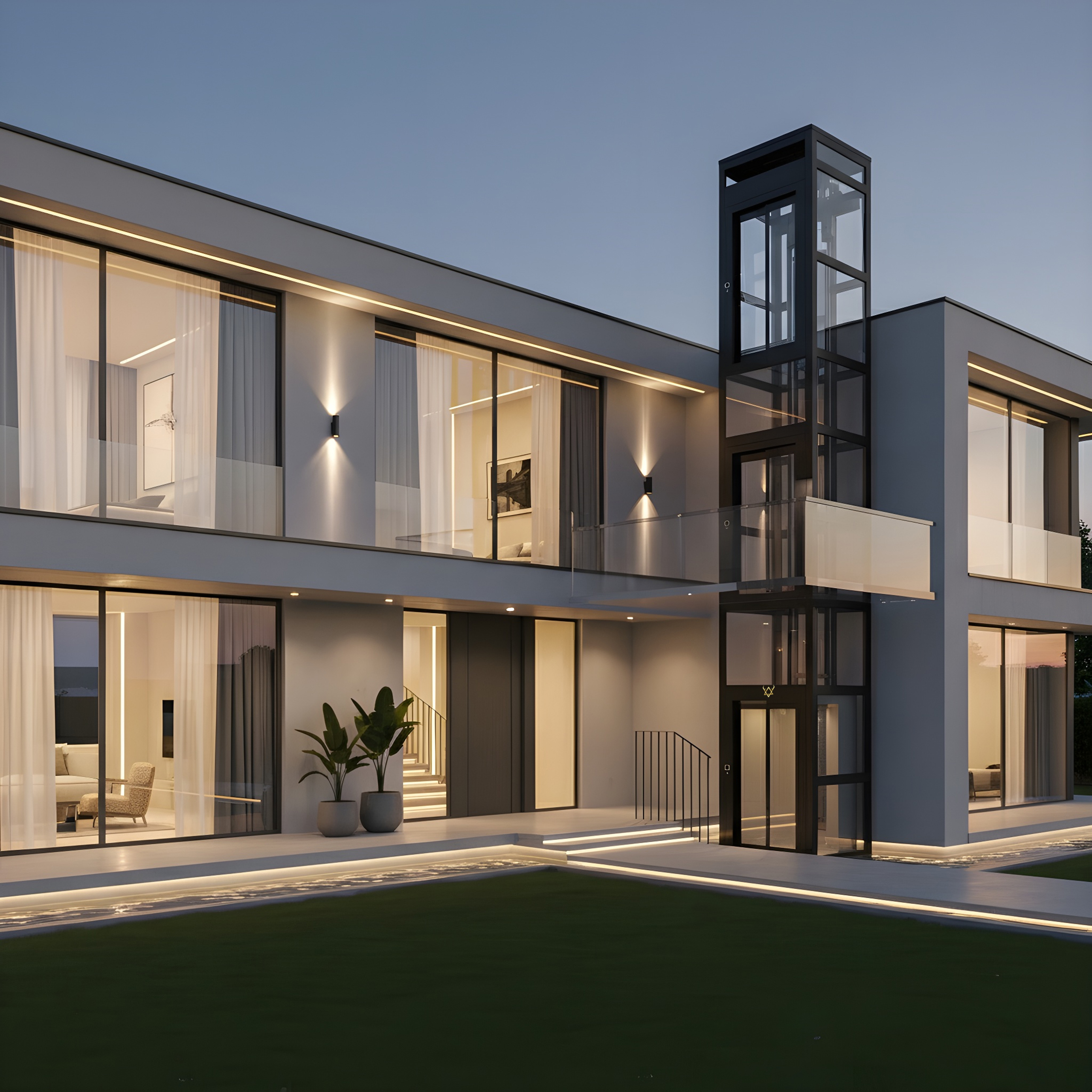

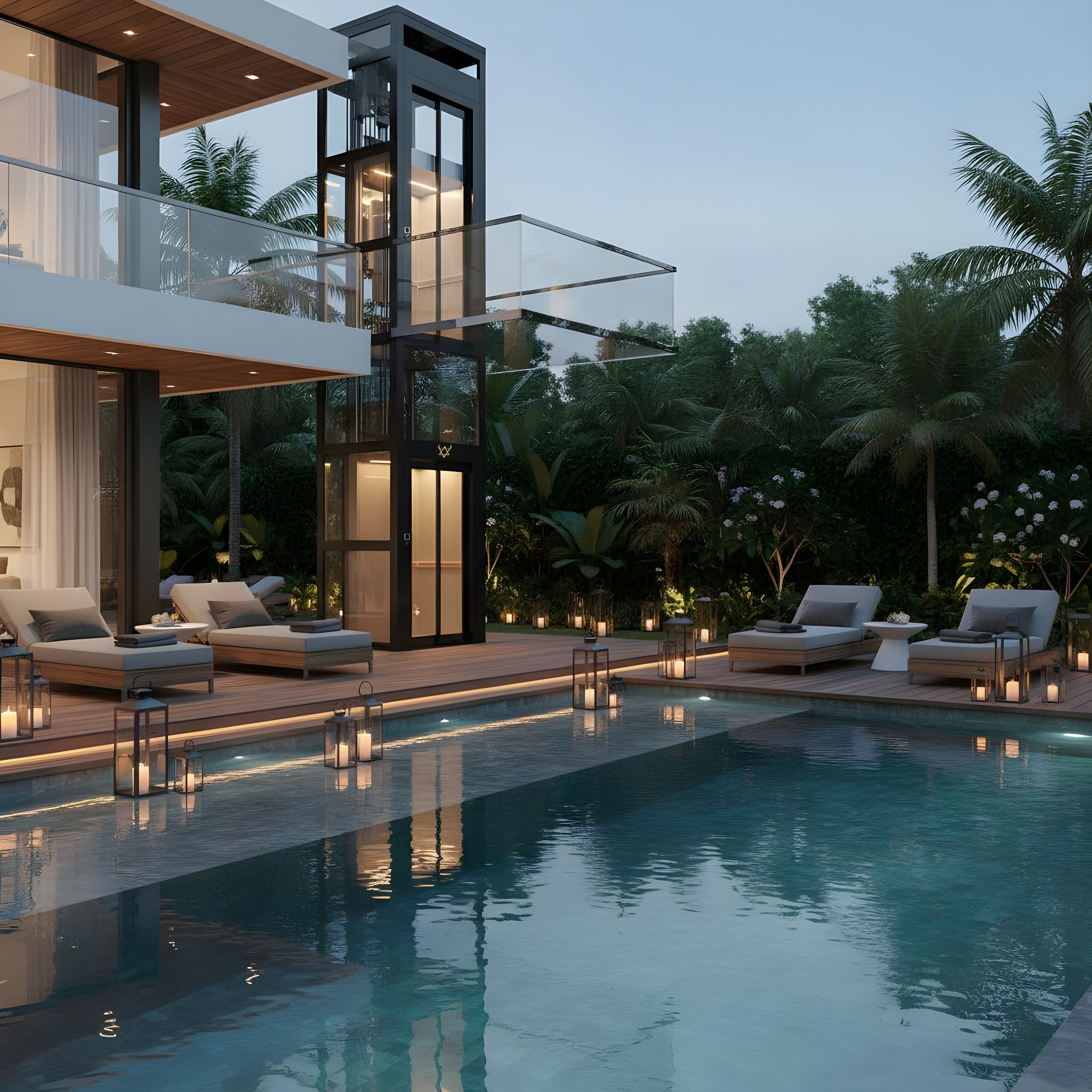

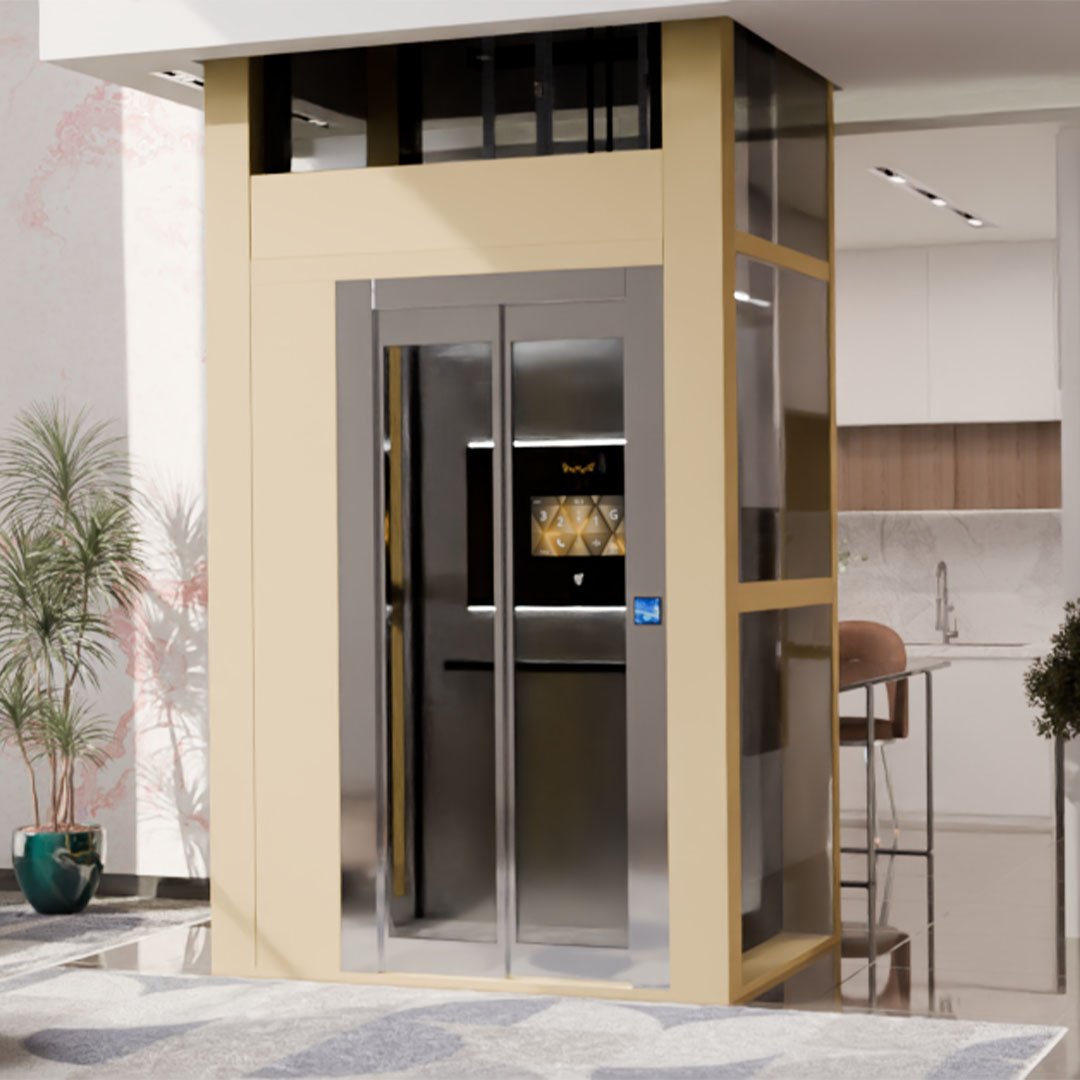

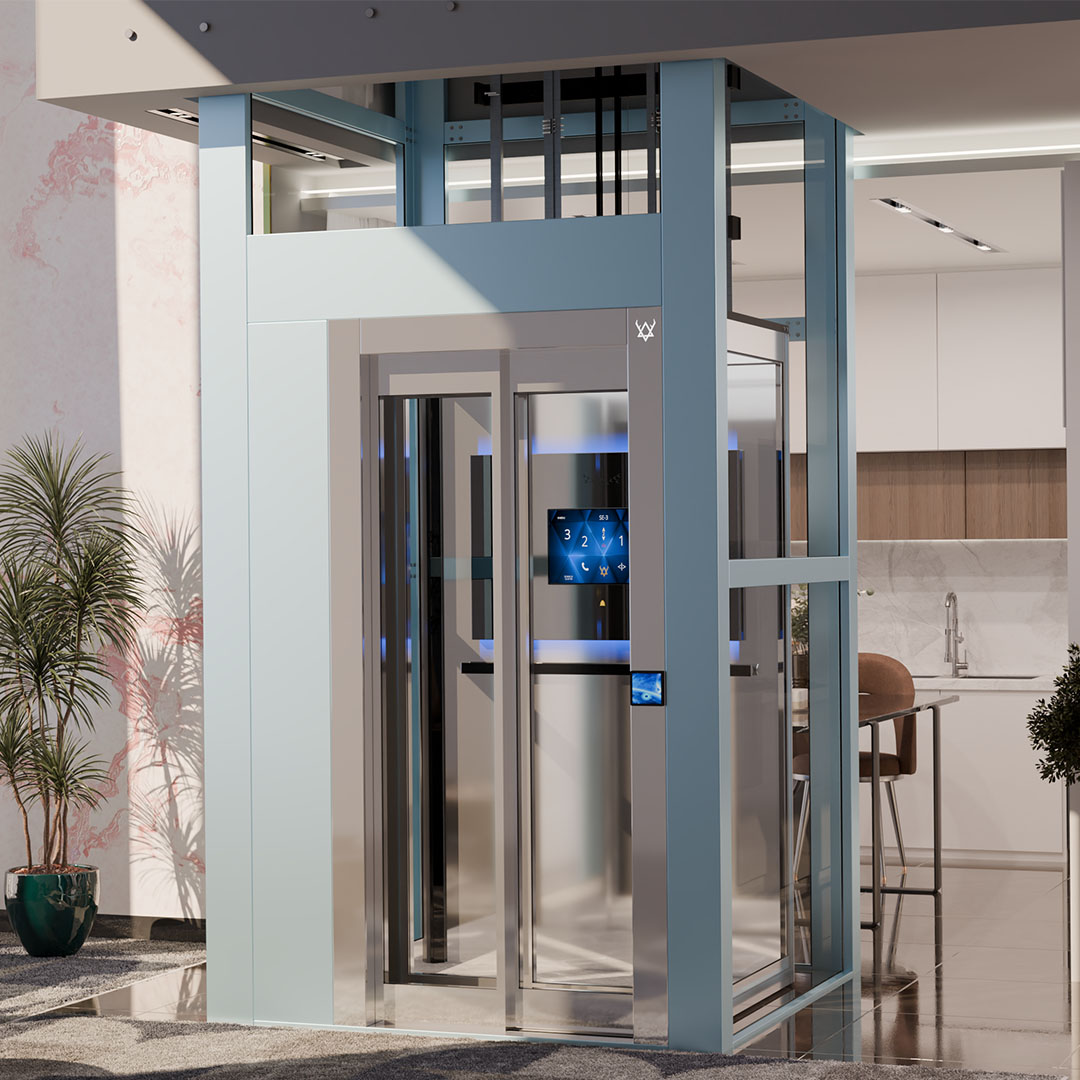

Meet Vetro, the new shaft option for SE-3. Crafted to add a refined, modern touch to your home, while delivering the reliability and performance that define Stag Elevators.
Technology
BELT DRIVE HOME ELEVATOR
The SE-3 Gearless Home Elevator is powered by an advanced 8-belt drive system combined with a 2-pulley gearless motor, delivering efficient power transmission, exceptional stability, and ultra-smooth vertical mobility. Working alongside a precision-engineered counterweight system, the reinforced belts minimise mechanical friction, ensuring quiet operation, precise floor levelling, and reliable performance for modern homes.

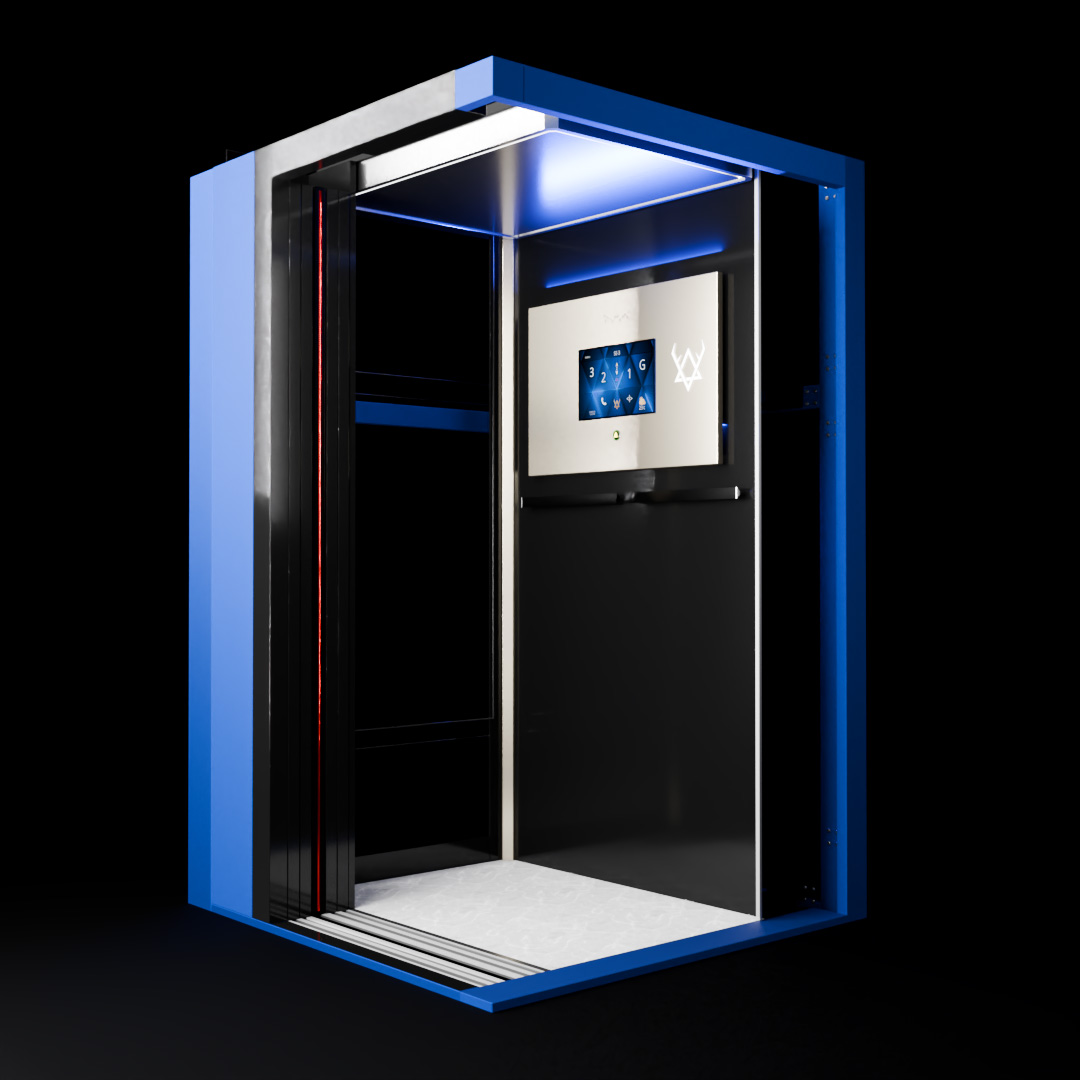

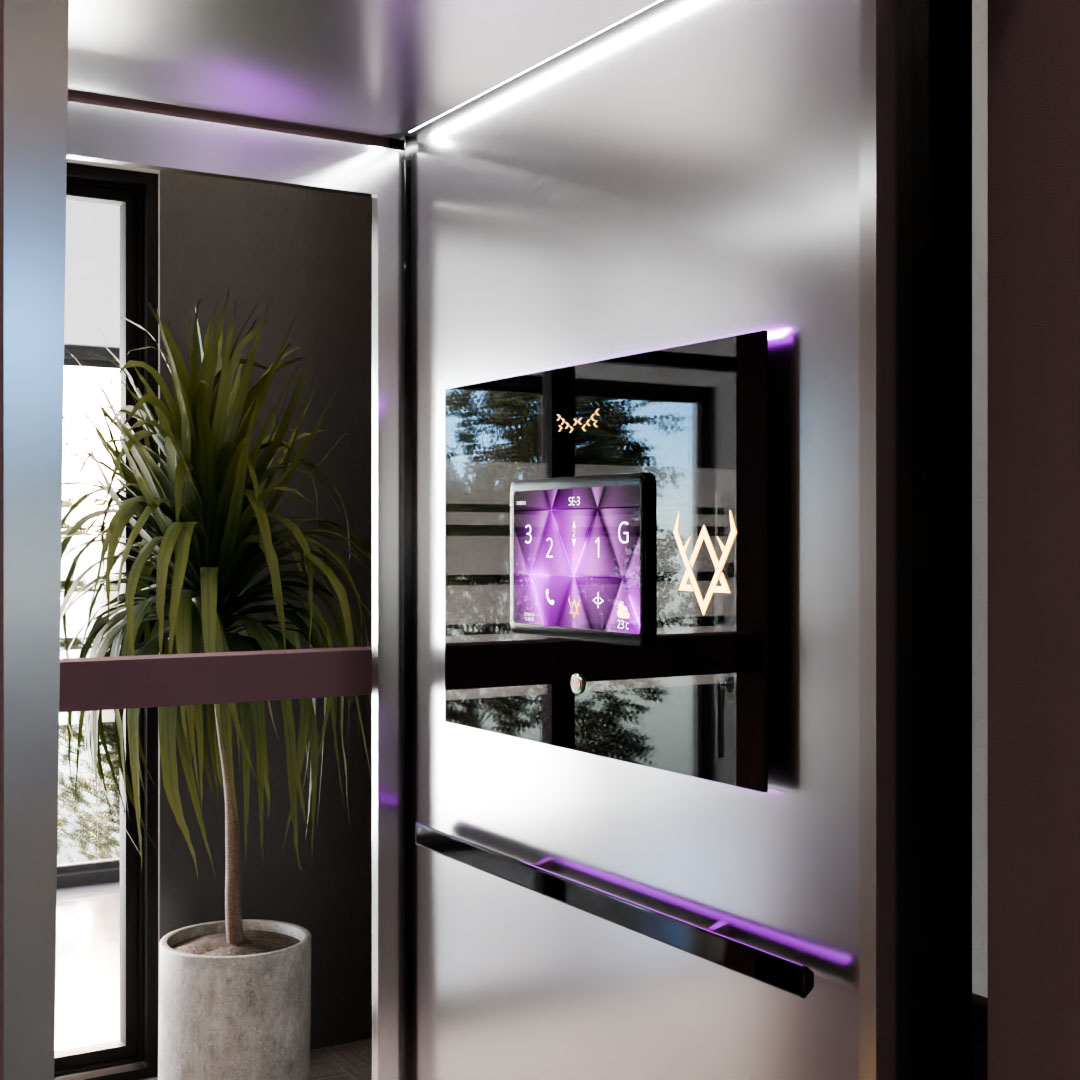

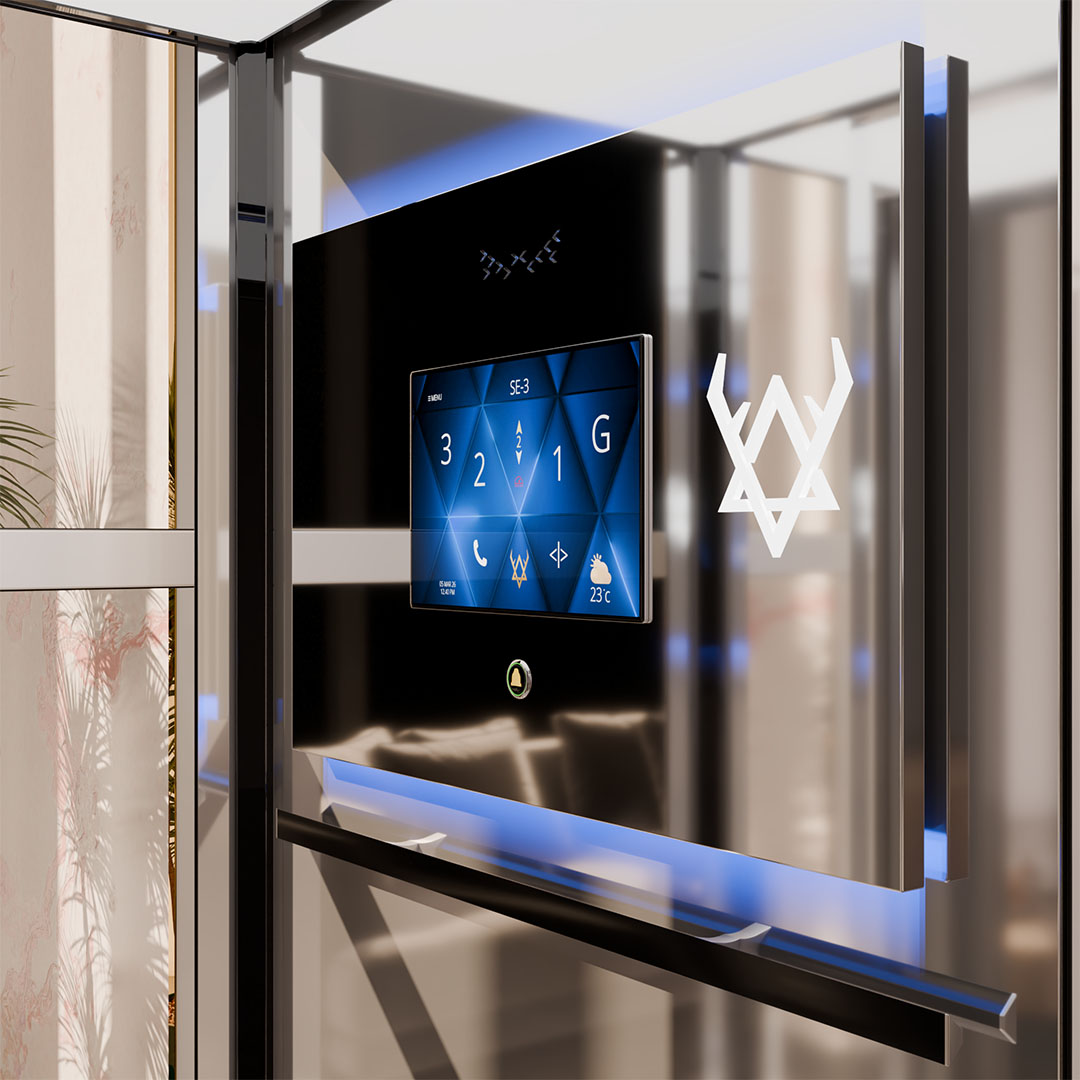

As Stag Elevators' first Zero AMC home elevator, the SE-3 requires no annual maintenance charges for up to 10 years, thanks to its maintenance-free belt drive technology that eliminates the need for regular oiling and greasing. It also features a premium Shadow Chrome metal and glass shaft structure, a 15.5" OLED touchscreen display, and fully customisable interiors, bringing together cutting-edge engineering, elegant aesthetics, and a truly premium home elevator experience.
SE-3 Home Elevator Features & Benefits

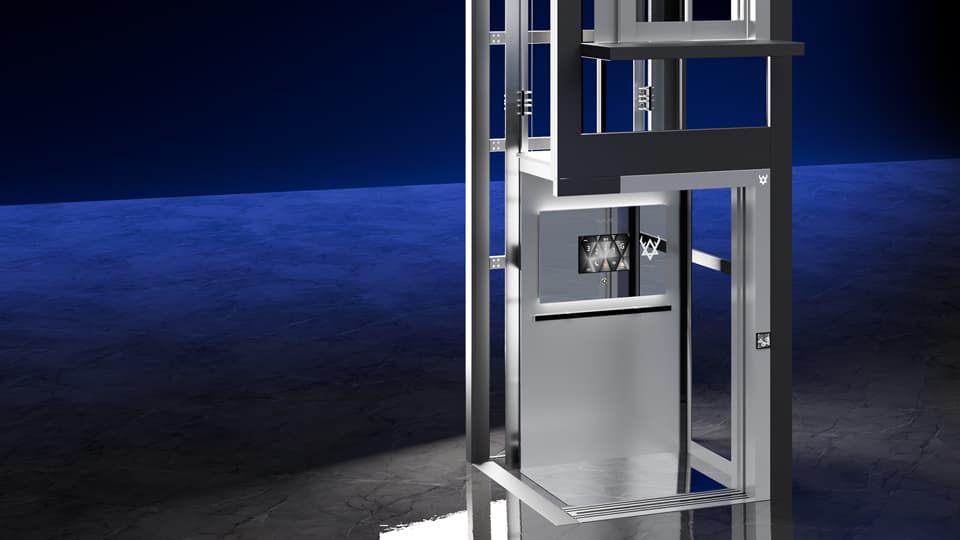

Ultra Quiet
Zero AMC
No annual maintenance contract required, with a low maintenance gearless belt drive system

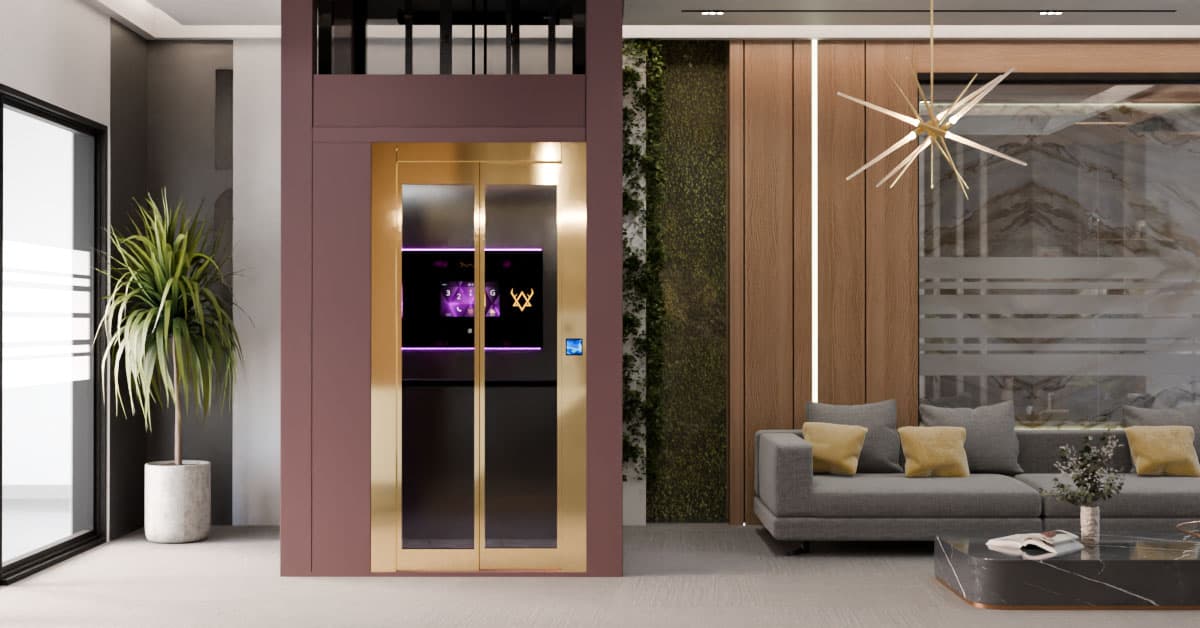

Energy Efficient
8-Belt Drive Technology
Advanced belt drive with a 2-pulley gearless motor for reliable, high-performance operation.

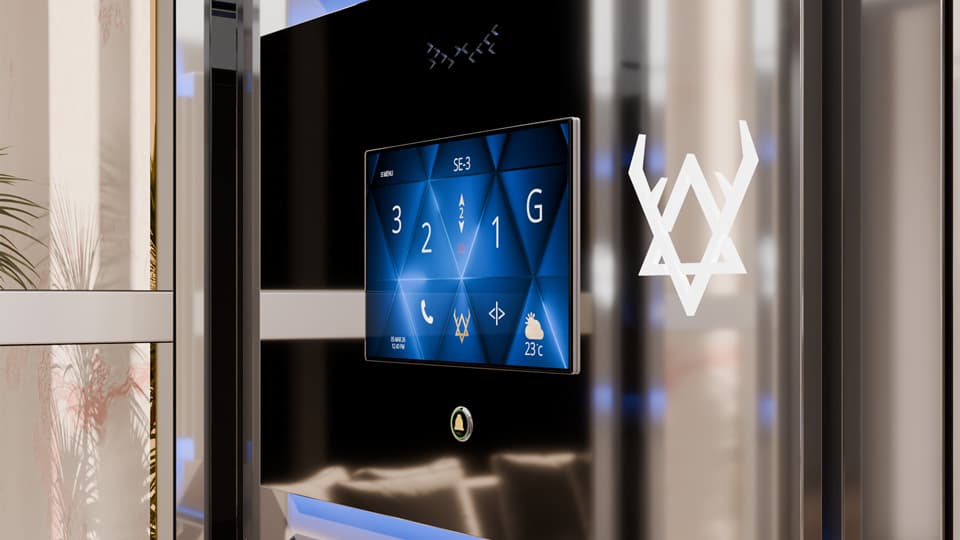

Modern Technology
Ultra-Smooth & Silent Ride
Engineered with EGSS technology for quiet, vibration-free travel and precise floor levelling.

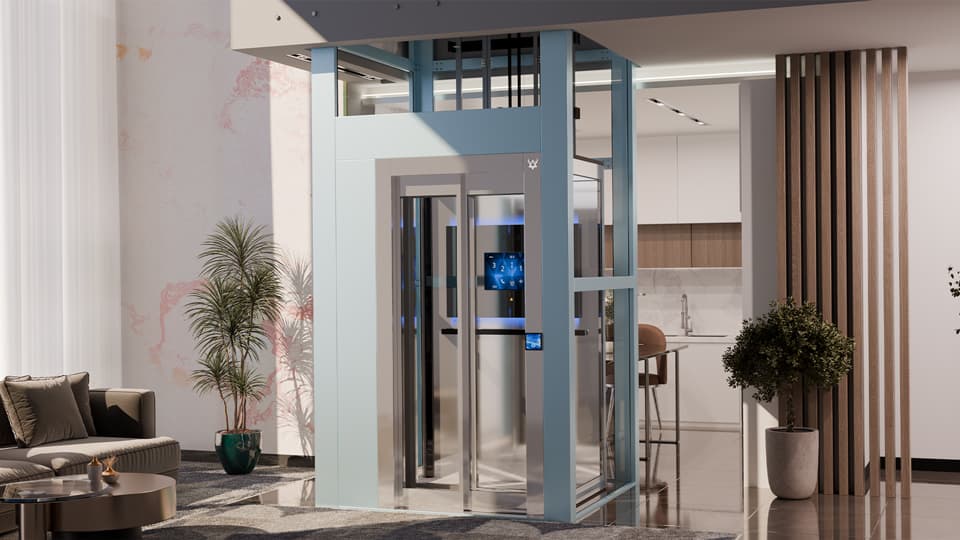

Premium Experience
Advanced Smart Safety
Equipped with Diagnostic Notification System (DNS), Speed Governor, Dual Battery ARD, & Mechanical Safety Lever.
Technical Outline
Stag SE-3 Home Elevator

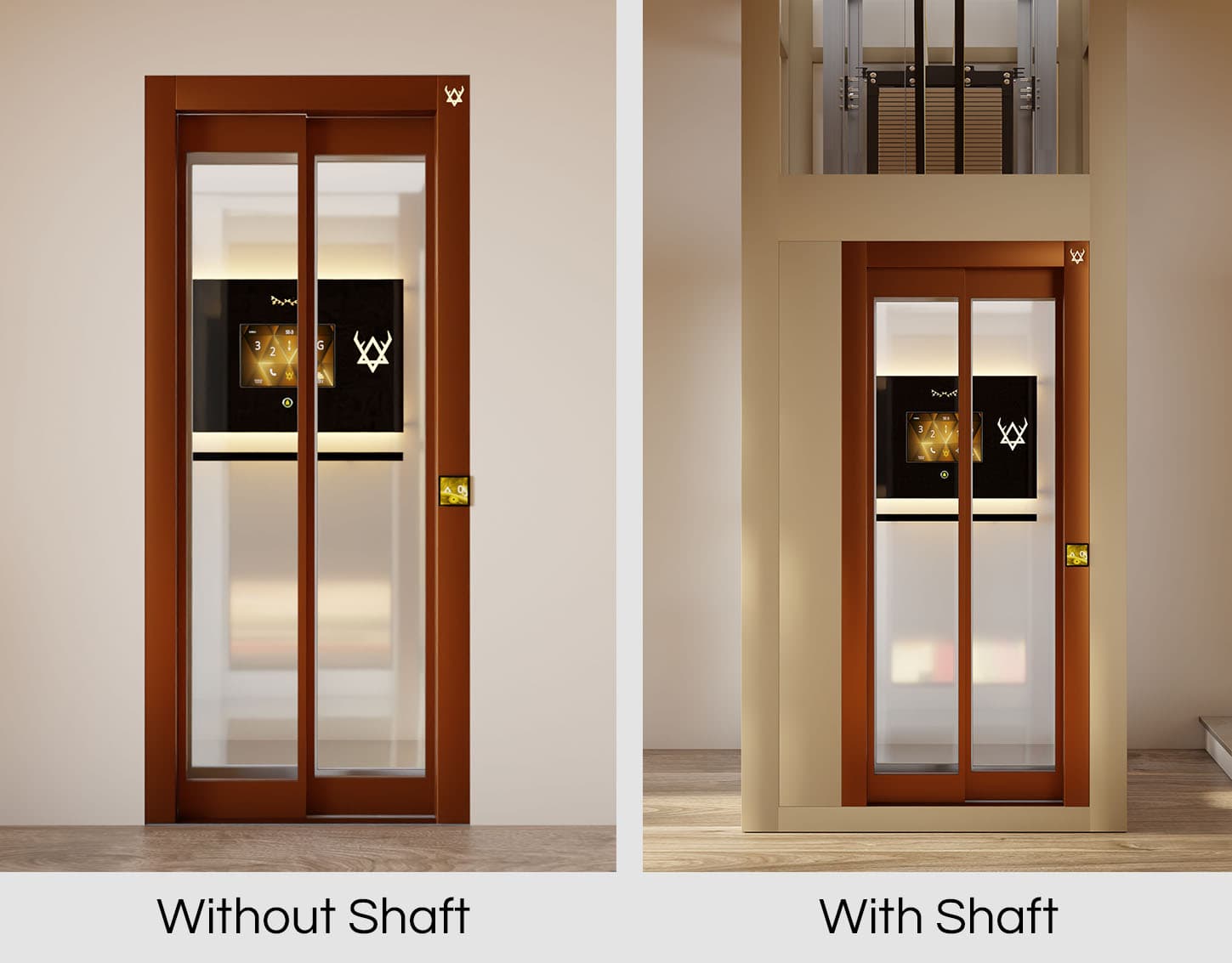

MINIMUM SPACE REQUIRED
With Shaft : 900 mm – 1650 mm
Without Shaft : 1000 mm – 1650 mm
Rated Speed
Up to 0.5 m/s
Travel Height
Up to 15,000 mm
Drive System
Gearless Traction Belt Drive
LOAD CAPACITY
Up to 400 kg
SAFETY PROTOCOLS
218 Advanced Safety Parameters
CERTIFICATIONS
EN 81-41 & TÜV SÜD-Certified
SUITABLE FOR
Homes up to G+4 (5 Stops)
